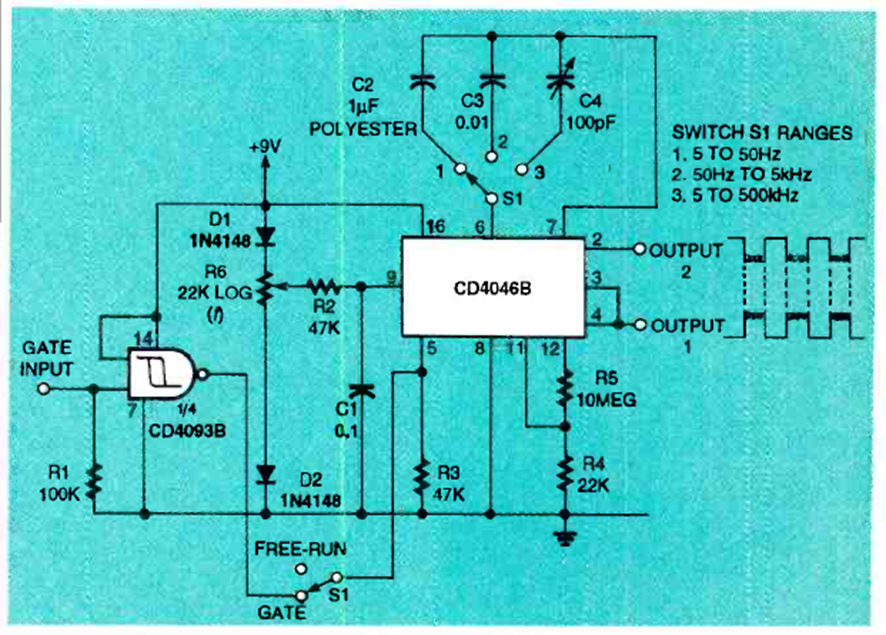

This circuit uses an unusual PLL, the 4046 CMOS. We found it in the October 1994 issue of Electronics Now. The circuit also uses a 4093 gate as a trigger.
| Clique na imagem para ampliar |
4046 Rectangular Universal Generator (CB25772E)
- Details
- Written by: Newton C. Braga
