Rain Detector (CB25963E)

Details
Written by: Newton C. Braga

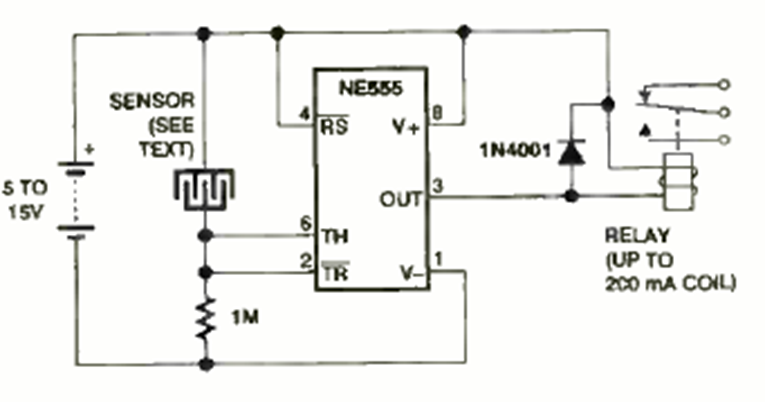

We found this circuit in the May 1996 Electronics Now magazine. The relay must have a voltage according to the circuit power supply and a trigger current of no more than 50 mA.




| Clique na imagem para ampliar |
