Twin-T Rejector Filter 741 (CB25603E)

Details
Written by: Newton C. Braga

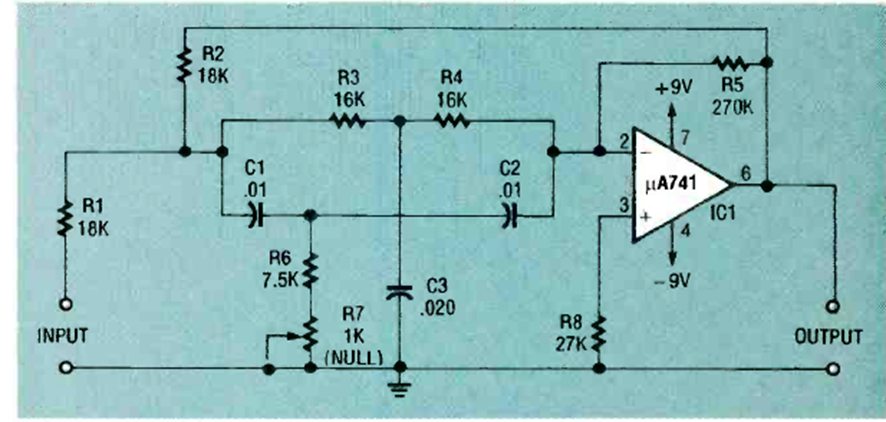

This filter that rejects a frequency range determined by the double-T was found in the August 1993 Electronics Now magazine. The source must be symmetrical.
