220 kHz FM Circuit (CB25771E)

Details
Written by: Newton C. Braga

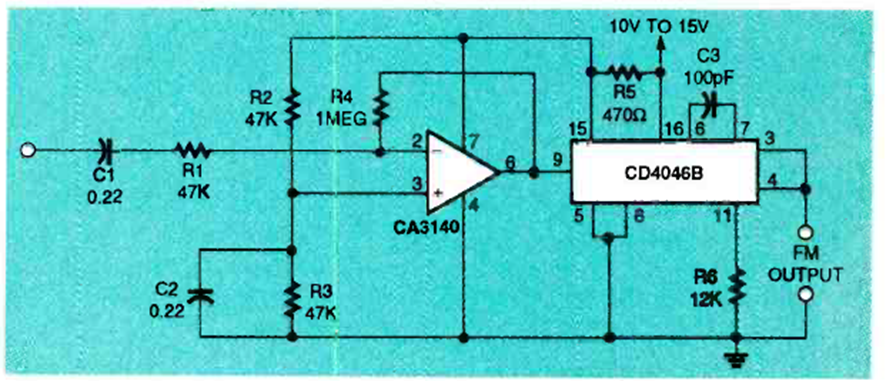

Using a 4046 PLL this circuit was obtained from the October 1994 issue of Electronics Now magazine. The circuit can be modified to generate signals at other frequencies.
