CIR25402S CB25378E (CB25378E)

Details
Written by: Newton C. Braga

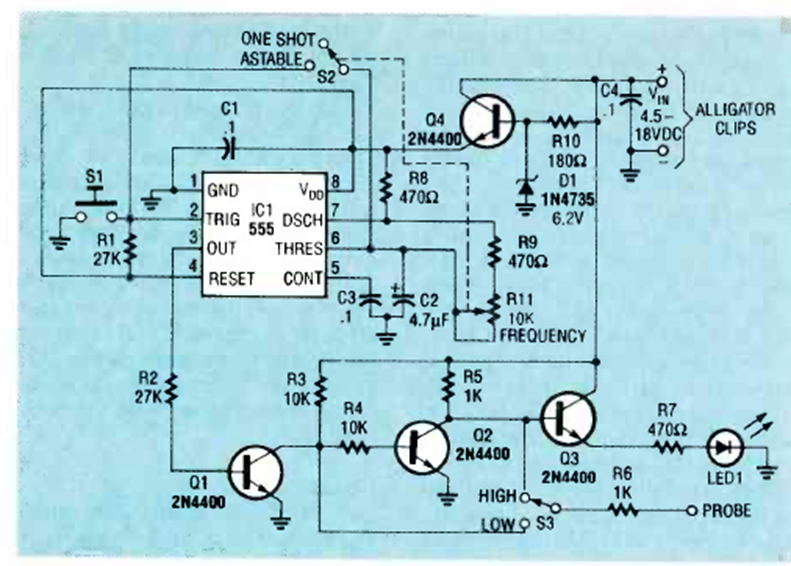

This test instrument was found in the April 1991 issue of Radio Electronics magazine. The circuit has good signal strength.




| Clique na imagem para ampliar |
