TTL interface with optical coupler (CB25492E)

Details
Written by: Newton C. Braga

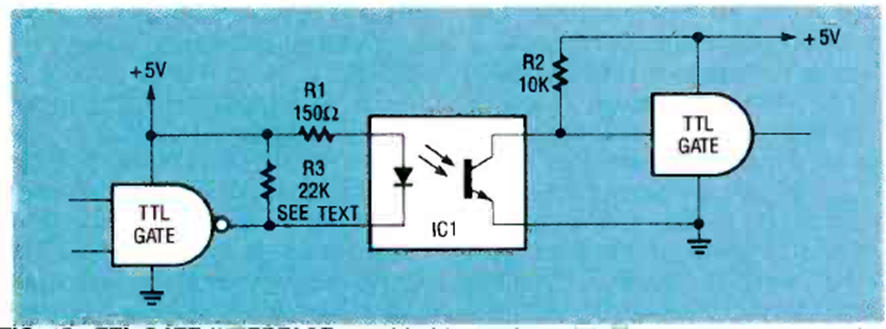

The figure shows how to couple two TTL circuits using an optical coupler to obtain isolation. The circuit is shown in the August 1992 issue of Radio Electronics magazine.
