Power Supply Monitor (CB25398E)

Details
Written by: Newton C. Braga

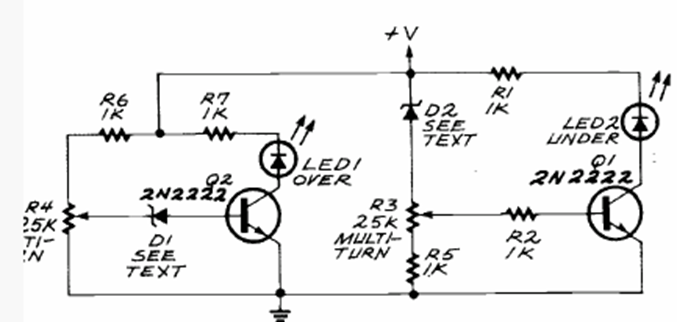

The purpose of this circuit is to monitor the output voltage of a power supply. The under and over voltage indicator was found in the August 1991 Radio Electronics magazine.
