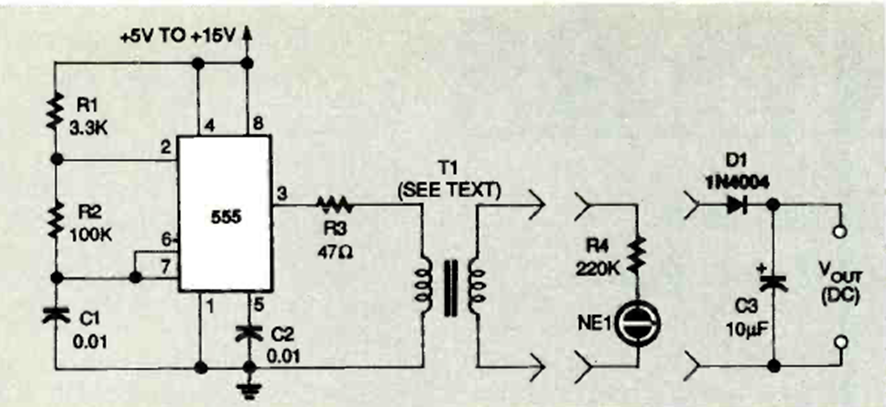

555 High Voltage Generator (CB25842E)

Details
Written by: Newton C. Braga



This very low current circuit was found in the April 1995 Electronics Now magazine. The frequency should be chosen for maximum efficiency according to the small transformer used.
