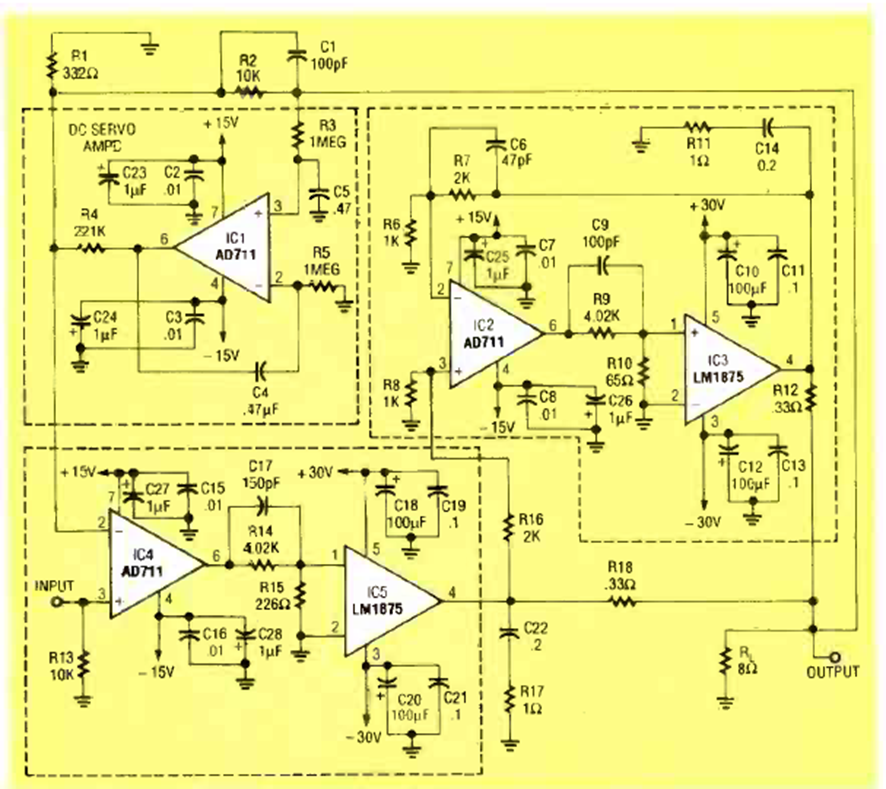

40W Amplifier LMLM1875 (CB25526E

Details: Written by: Newton C. Braga

)

We found this circuit in the November 1992 issue of Radio Electronics magazine. The 30V power supply must be symmetrical and preamplification stages are included.
