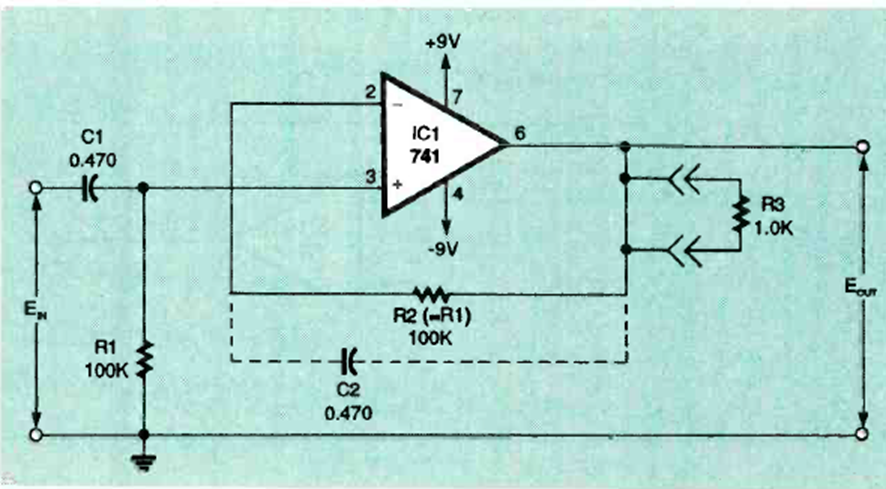

AC Voltage Follower 741 (CB25792E)

This circuit was found in the January 1995 Electronics Now magazine. Its configuration is valid for other operating systems. The source must be dual.
