Binary AC Switch Circuit 4013 (CB25741E)

Details
Written by: Newton C. Braga

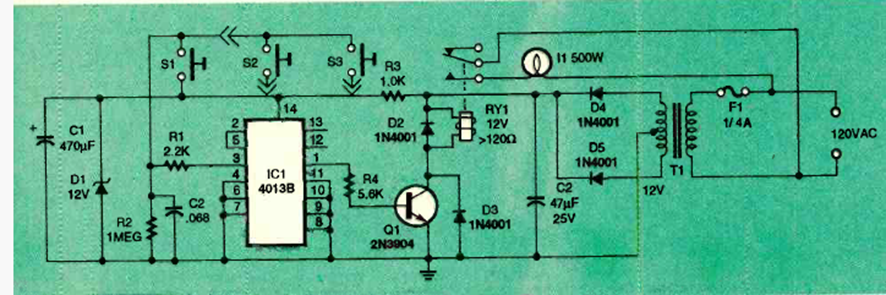

We found this mains-powered switch circuit in Electronics Now magazine from July 1994. It could be used in a table lamp or touch control.
