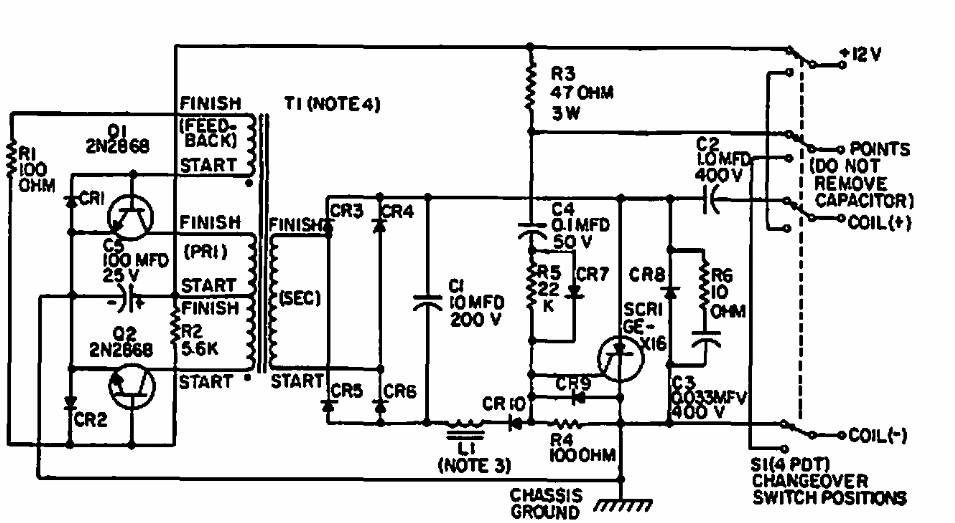

This circuit was obtained from a 1965 General Electric documentation. The components are of the time and no information on the inverter transformer is given. The circuit operates at 22 kHz and provides a 175 V voltage to the discharge capacitor.
| Clique na imagem para ampliar |
