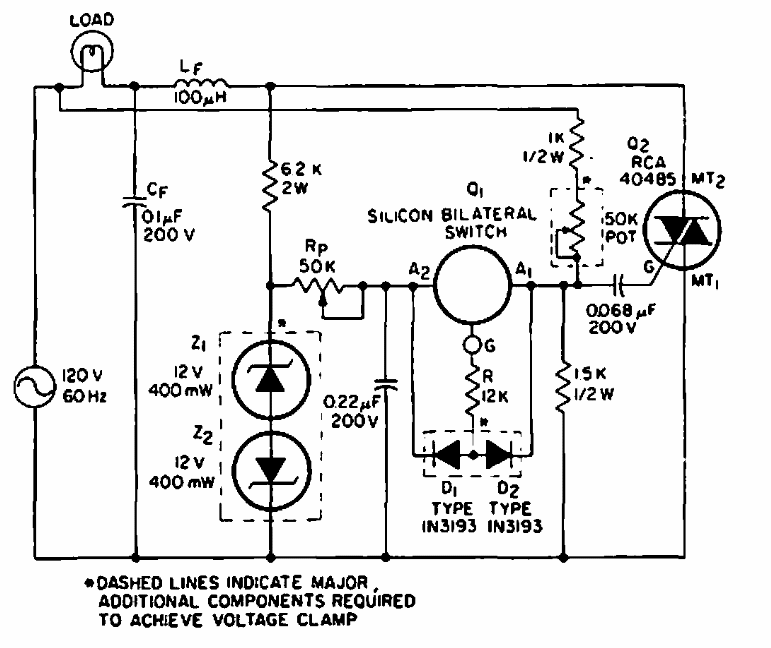

This circuit was found in the 1969 RCA thyristor manual. The circuit has a limiter (clipping) with two 12 V zener diodes in opposition to cut power grid pulses that may influence the trigger.
| Clique na imagem para ampliar |
Dimmer with clipping (CB7211E)
- Details
- Written by: Newton C. Braga
