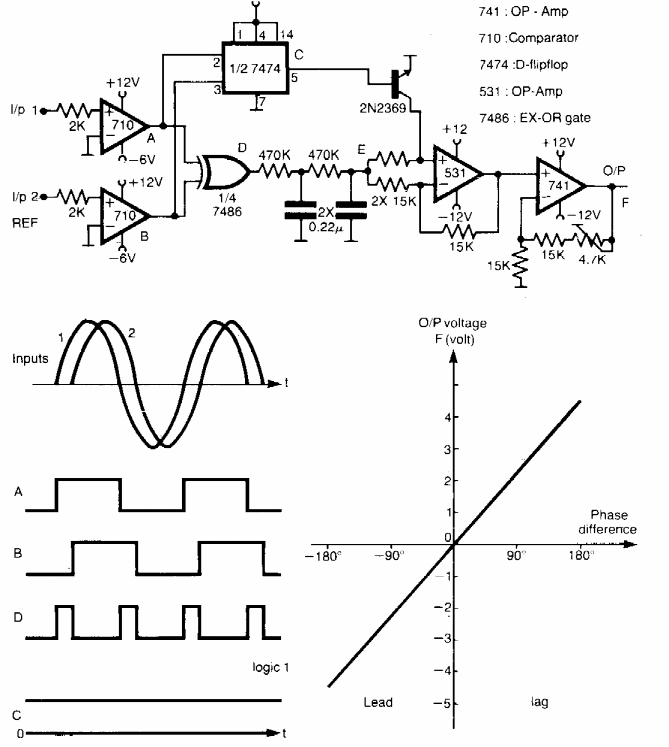

Found in 90's Electronic Engineering this circuit can be used to measure phase angles between two signals from 0 to 180 degrees. The components used admit modern equivalents.
| Clique na imagem para ampliar |
A Phase difference meter (CB7277E)
- Details
- Written by: Newton C. Braga
