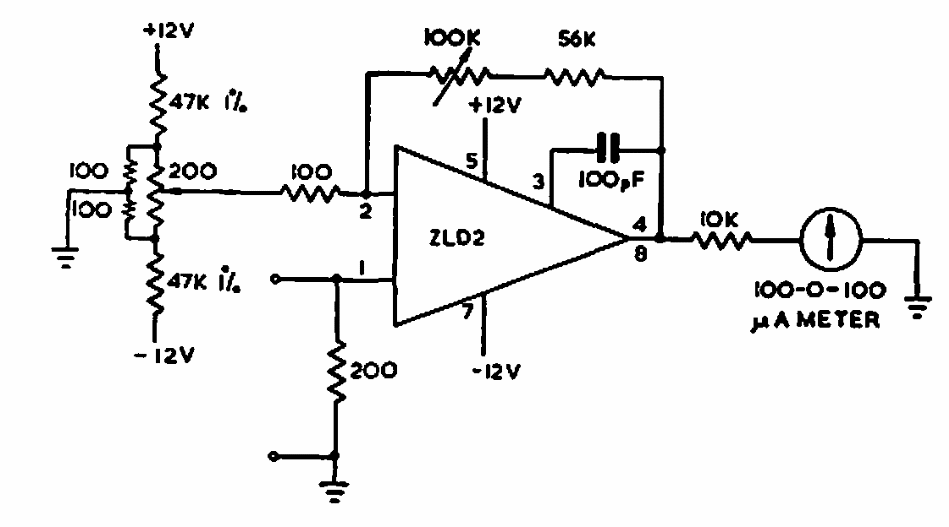

This circuit was found in a 1967 Ferranti manual and can be applied to modern operating equivalents. It expands the scale of a 100 uA microammeter with zero in the center of the scale to a full scale of 10 uA.
| Clique na imagem para ampliar |
Scale expander for microammeter (CB7363E)
- Details
- Written by: Newton C. Braga
