Water Level Sensor (CB6557E)

Details
Written by: Newton C. Braga

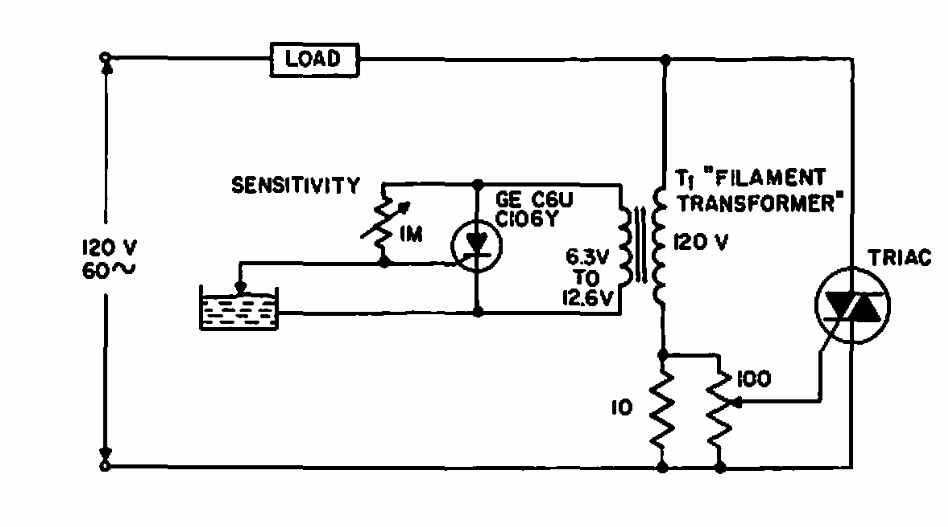

    This grid-isolated sensor was proposed by General Electric in 1966 documentation. The circuit currently uses common components.




| Clique na imagem para ampliar |
