8 Hz Twin T (CB6718E)

Details
Written by: Newton C. Braga

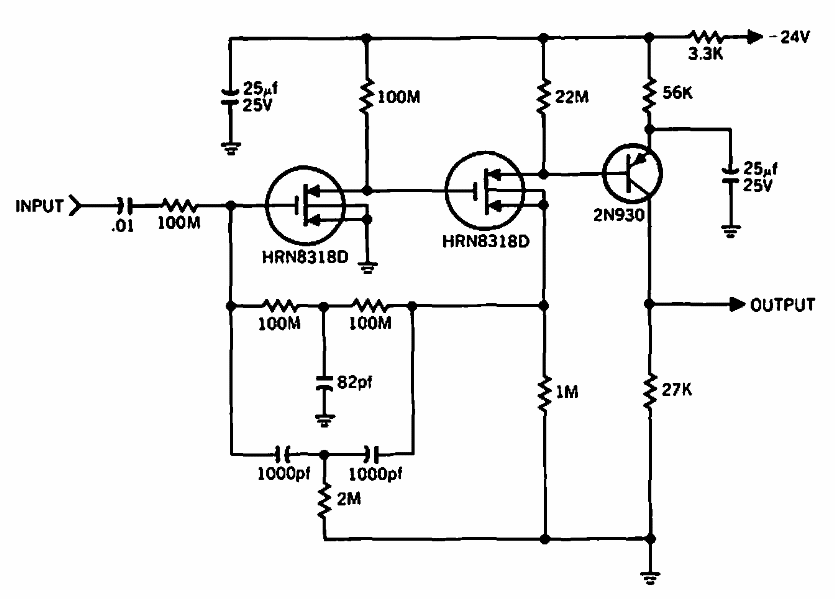

     This 1968 Hughes circuit uses period components and operates at 8 Hz. Current equivalent components may be employed. Note the high supply voltage.




| Clique na imagem para ampliar |
