Transmission line driver (CB6927E)

Details
Written by: Newton C. Braga

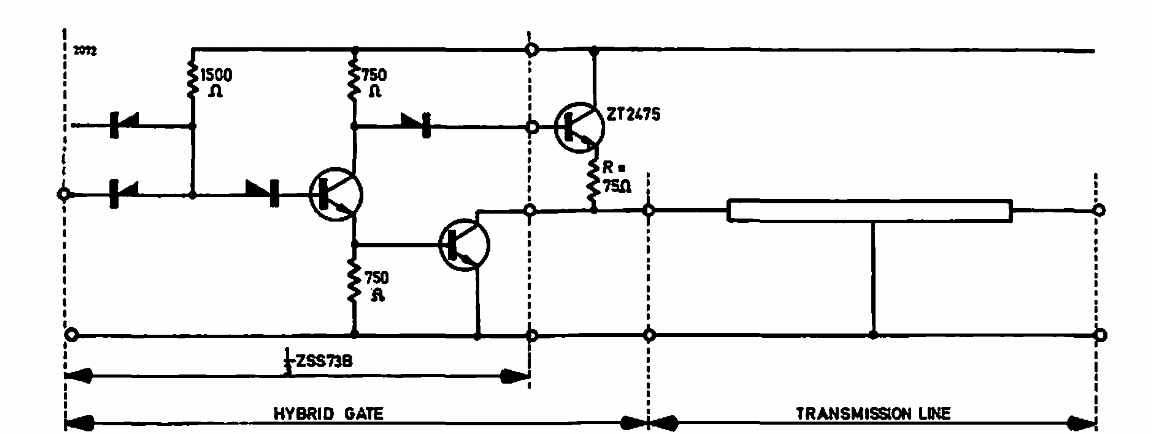

     Using transistors at the time, this circuit was found in a 1967 Ferranti documentation. The circuit is for 150-ohm transmission lines.




| Clique na imagem para ampliar |
