25 W Amplifier (CB6300E)

Details
Written by: Newton C. Braga

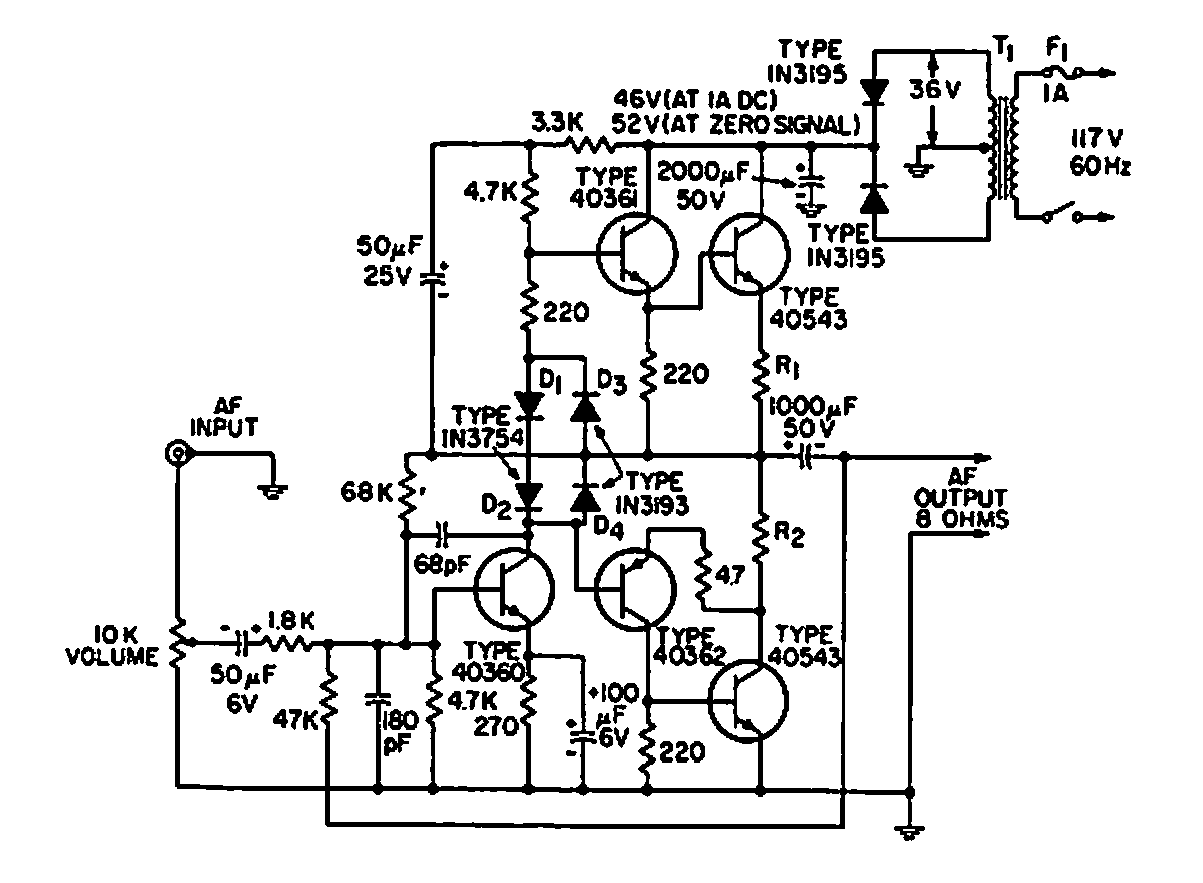

     This RCA circuit has current limitation. The circuit is from an ancient American documentation making use of components of the era. The circuit includes the power supply.
