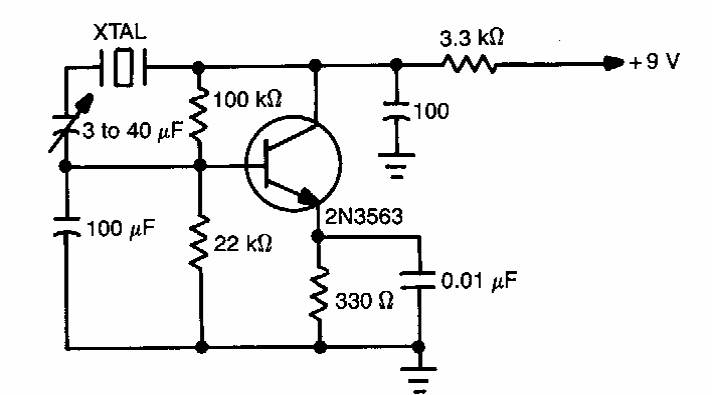

The crystal frequency of this circuit found in an American documentation is limited only by the characteristics of the transistors used. The trimmer adjusts the frequency within a small range of values.
| Clique na imagem para ampliar |
Crystal Oscillator (CB6522E)
- Details
- Written by: Newton C. Braga
