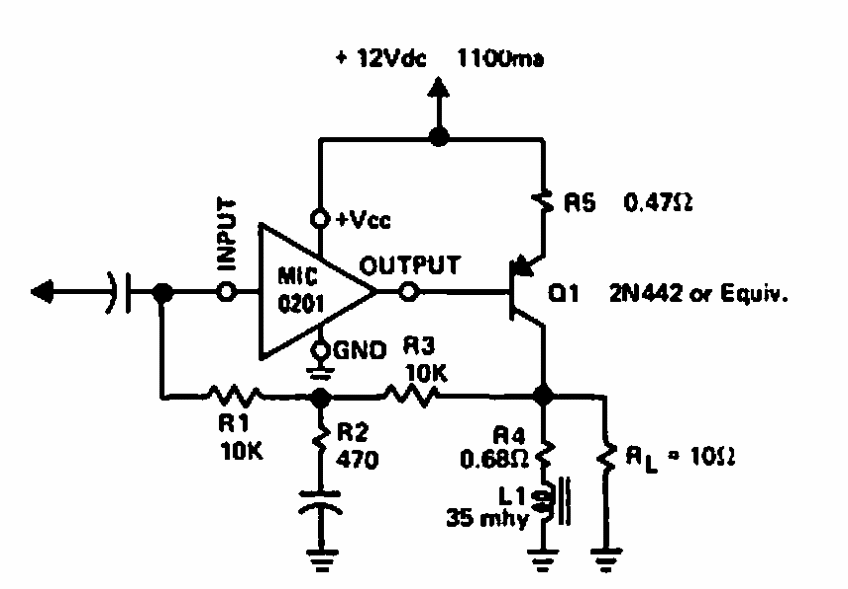

Integrated 6W Amplifier (CB6265E)

Details
Written by: Newton C. Braga



    This circuit was found in a Mallory documentation from 1968. The integrated circuit is of the time, unusual in our day. Input sensitivity is 20 mV for 2 W output.




| Clique na imagem para ampliar |
