24 Hour Clock (CB6462E)

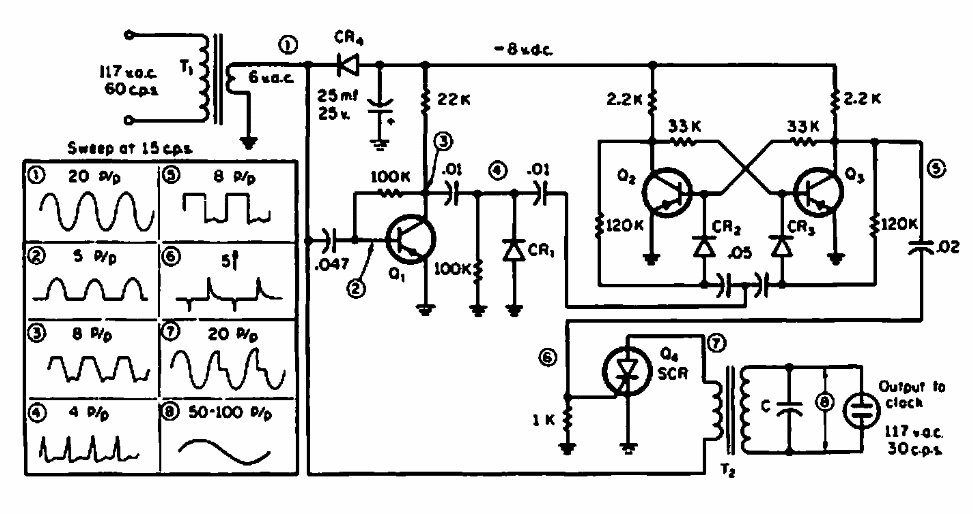

This circuit divides the grid 60 Hz frequency to obtain 20 Hz to drive mechanical watches used at the time. The circuit is from a 1970 CQ magazine.

| Clique na imagem para ampliar |

200 mA LDO (CB1250E)
The circuit shown in the figure consists of a low voltage dropout (LDO) regulator for 200 mA using...
Varicap Variable Frequency Oscillator (CB4587E)
The great advantage of the circuit shown in the figure is that its frequency is controlled by a...
Electric Tool Torque Control (CB20794E)
Found in American documentation from the 1970s, this circuit can be designed based on a modern SCR,...
