Binary Neon (CB6806E)

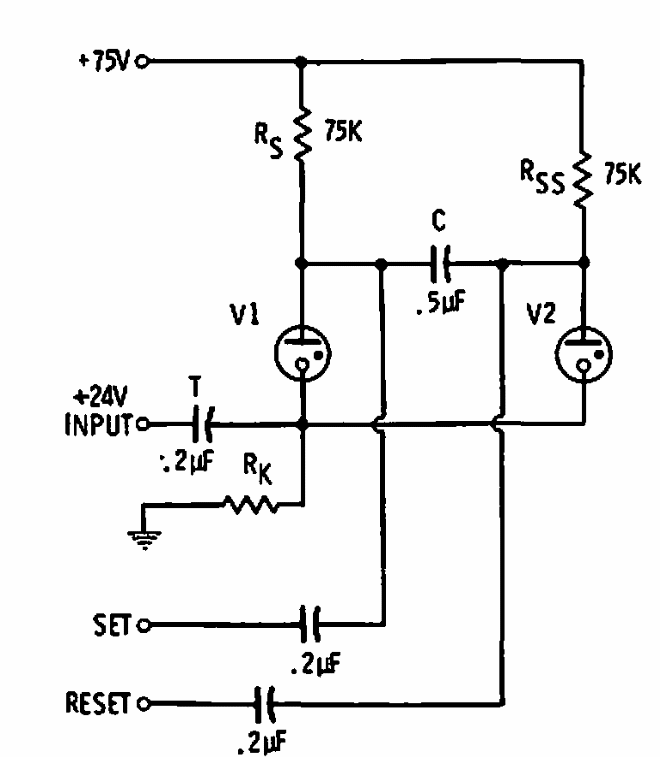

This flip-flop with neon lamps was found in a 1969 publication that deals precisely with neon lamps. Observe the high supply voltage.

| Clique na imagem para ampliar |

Low Consumption Pulsator (CB20346E)
This circuit produces the ticking of a clock on a common piezoelectric transducer. The circuit has an...
Band Pass Filter 741 (CB16220E)
The basis of this circuit is a double T in the feedback, which has the components calculated to...
Phototransistor Optical Ttrigger (CB14648E)
This configuration was found in the Texas Instruments optoelectronics manual. PNP transistors...
