Summing amplifier (CB6786E)

Details: Written by: Newton C. Braga

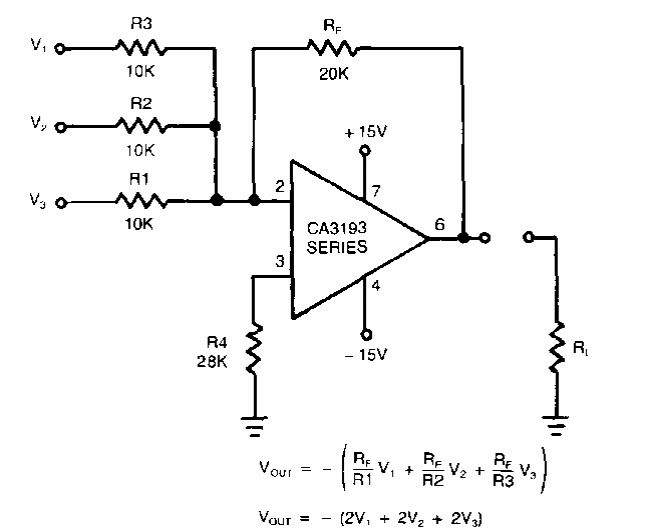

This RCA / GE circuit from the 90s can be applied to any modern operational amplifier. The number of entries (installments) can be changed depending on the application.

| Clique na imagem para ampliar |
