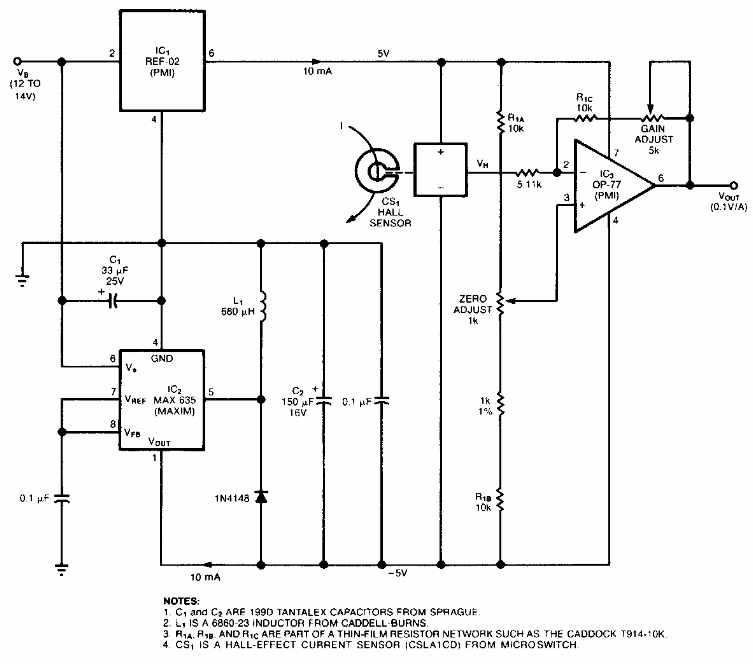

Hall current monitor (CB7384E)

Details
Written by: Newton C. Braga



     Found in an EDN from the 90's this circuit makes use of unusual components today.
