2 to 10 000 Hz Programmable Clock (CB6461E)

Details
Written by: Newton C. Braga

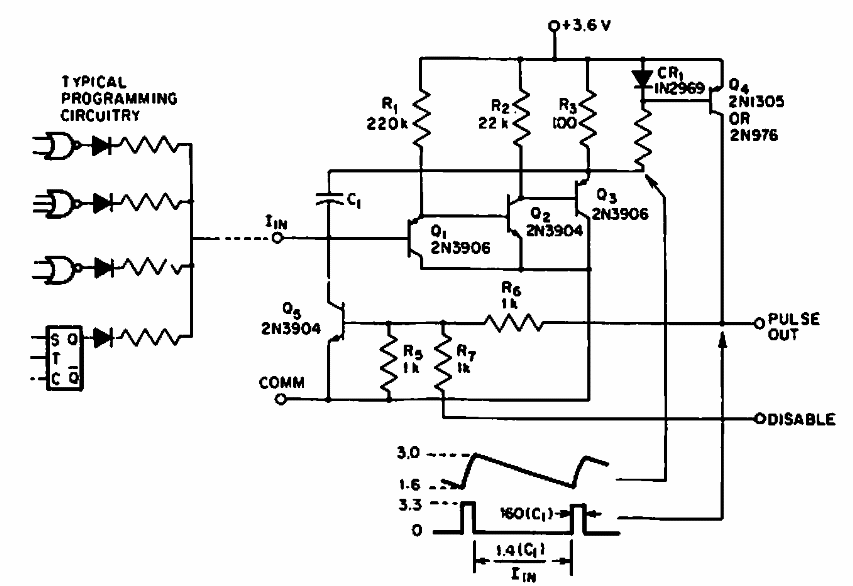

    This circuit was found in a 1969 US documentation. It provides a signal that can be externally programmed as suggested circuits. The circuit can be used as a shield.
