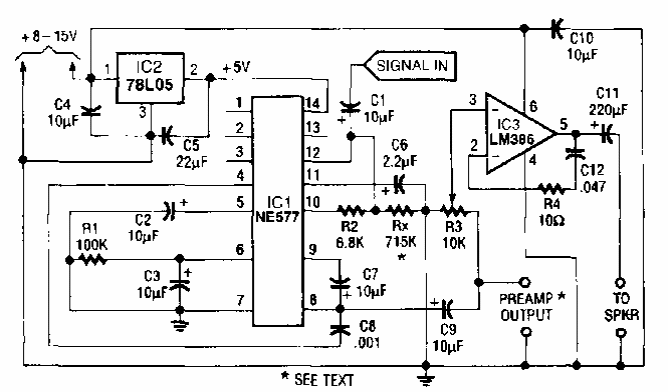

This circuit was found in an Experimenters Handbook of the 1990s. The purpose of this circuit is to keep constant the audio signal level of a system, increasing the lower signals.
