Delayed Triac (CB7242E)

Details
Written by: Newton C. Braga

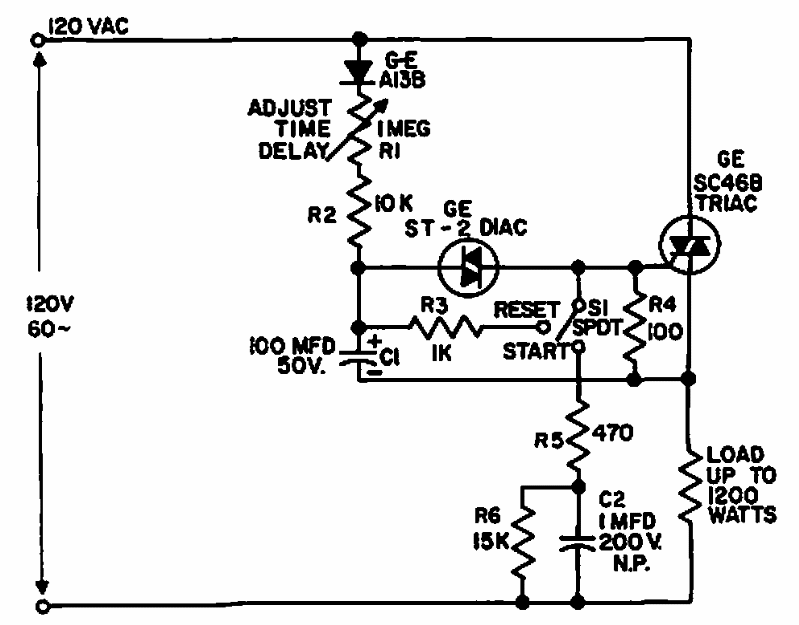

     This control for 1200 W of power was found in the documentation of General Electric of 1966 has a activation delay. The triac must be according to the load.
