Inverter 120 V x 2 kW (CB7256E)

Details
Written by: Newton C. Braga

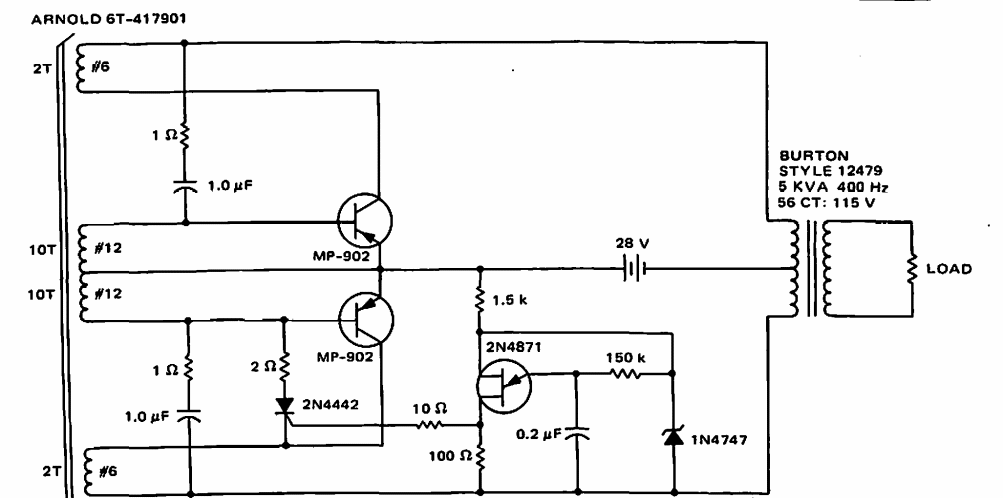

     This circuit was found in Motorola documentation from 1968, using high power transistors and operated at 580 Hz. The circuit employs a special transformer.
