Negative Bias Source (CB6736E)

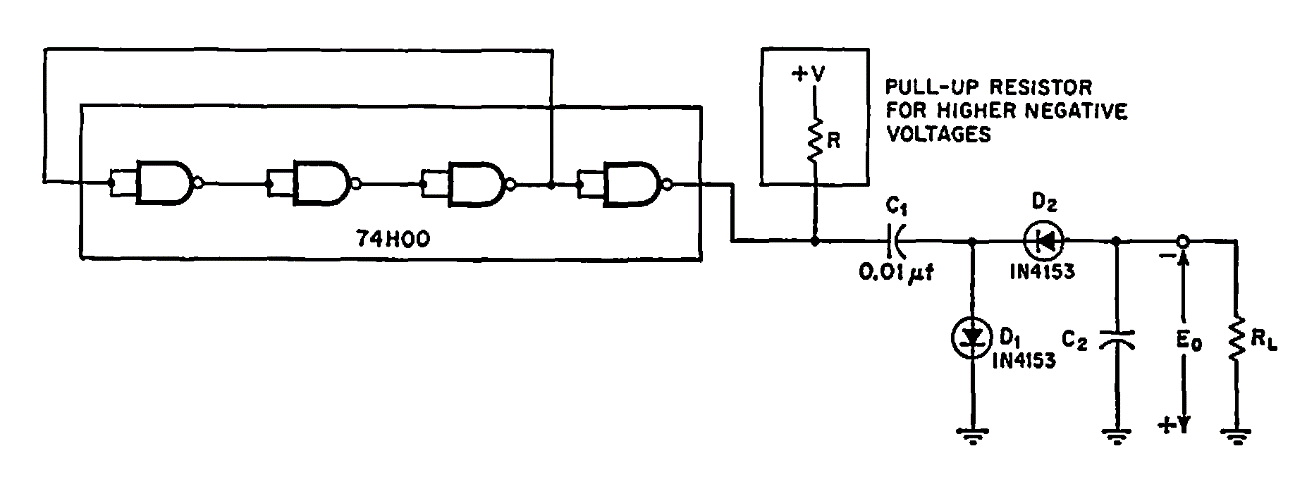

This circuit provides a negative supply for circuit biasing. The current is very low. The voltage obtained is -2.4 V.
