Phototimer (T1729E)

Details
Written by: Newton C. Braga

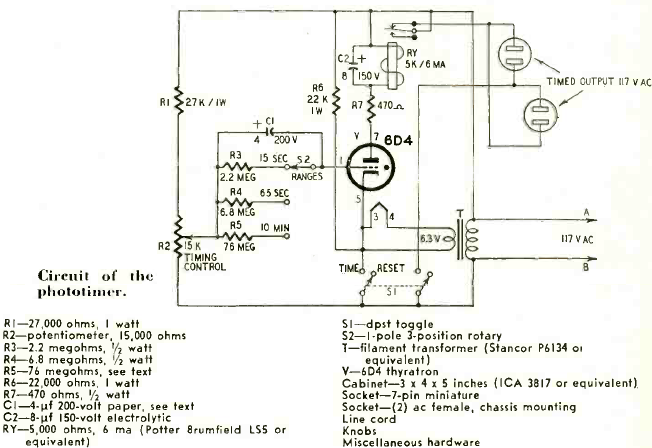

This timer for photography work was published in Radio Electronics magazine in December 1959. Power comes from the power grid through a transformer source.




| Clique na imagem para ampliar |
