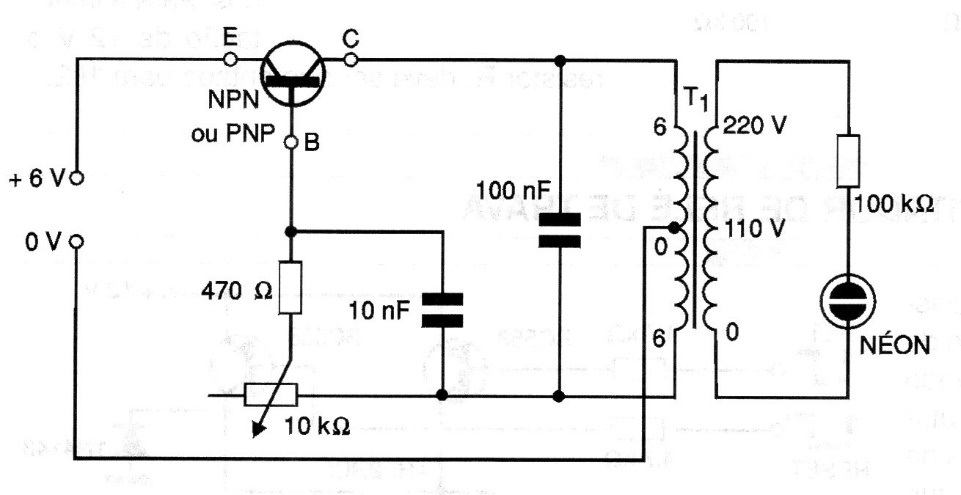

This circuit consists of a test oscillator for medium and high power NPN transistors. For PNP, just invert the polarity of the supply. The transformer has a 6 to 9 V winding with a current of 100 to 500 mA. P1 adjusts the oscillation point that the lamp turns on.
