Modified AV2 Voltmeter (T797E)

Details
Written by: Newton C. Braga

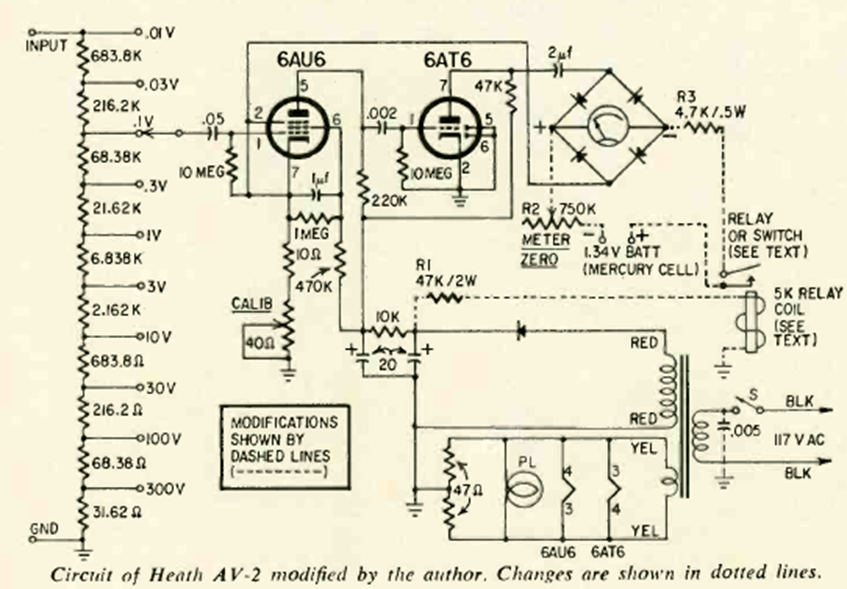

This is the circuit of a modified Heathkit kit. The circuit was found in a Radio Electronics from December 1965. The author of the circuit included improvements to the original circuit.




| Clique na imagem para ampliar |
