792 or 592 Preamplifier (CB25470E)

Details
Written by: Newton C. Braga

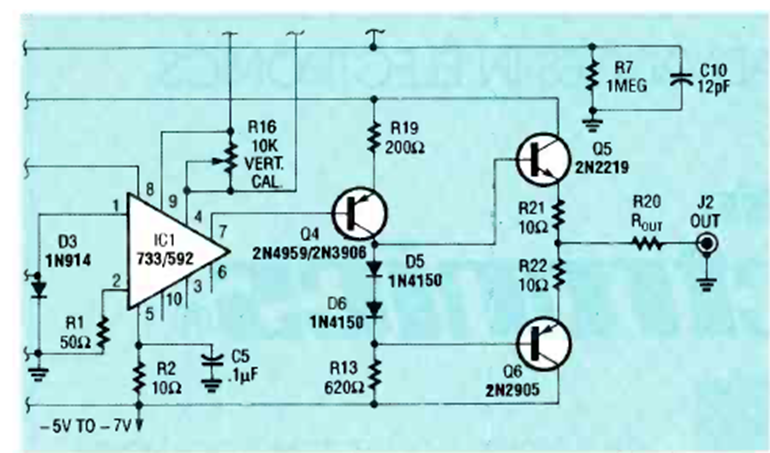

We found this circuit in a Radio Electronics magazine from June 1992. The circuit has a power stage and is used with 4.5 MHz video TV signals.




| Clique na imagem para ampliar |
