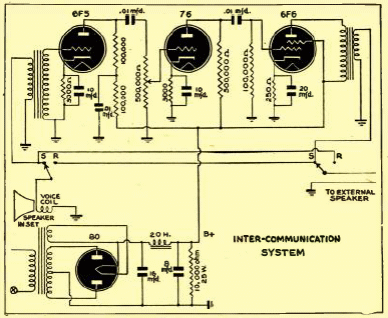

This two-way intercom was found in a 1943 publication. The transformers are output types for tubes, and the loudspeaker doubles as a microphone. The range depends on the losses in the wires. The circuit is for two ways but can be extended to more ways.
