45W Amplifier (T497E)

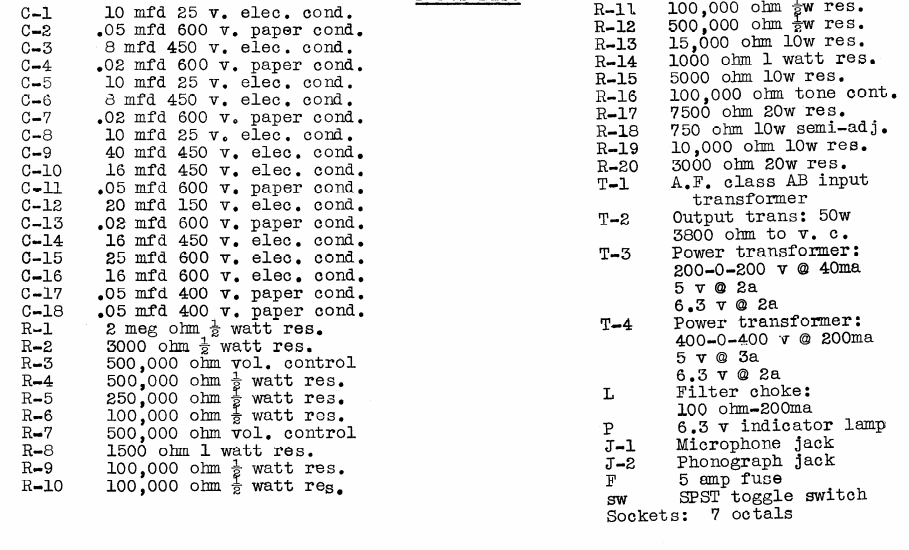

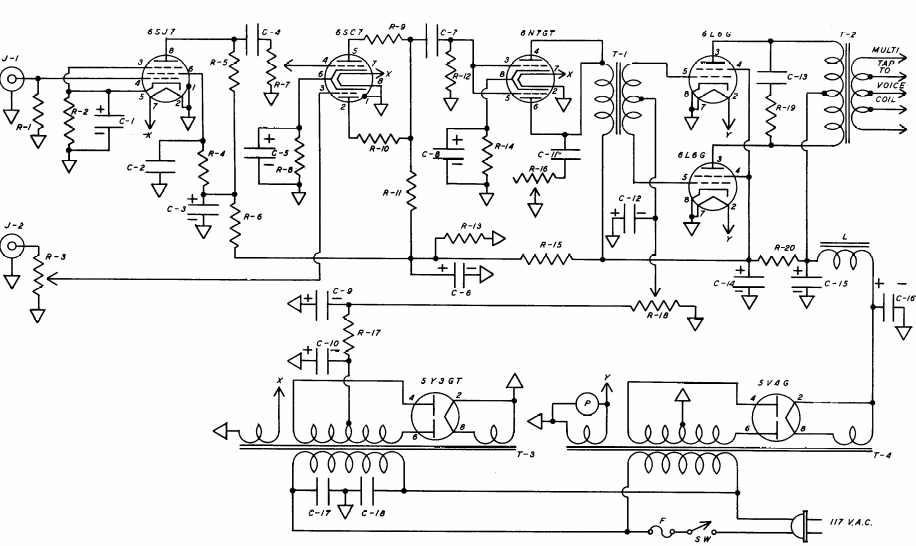

This Public Address amplifier was found in a 1947 amplifier manual. The power supply uses two transformers with two rectifier tubes.
