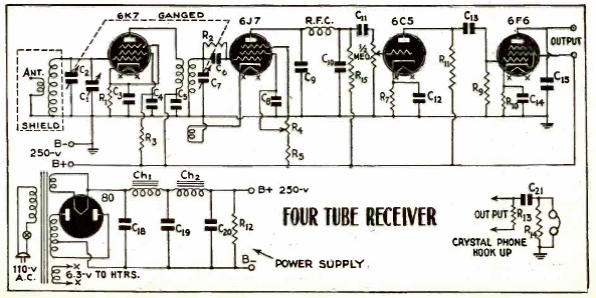

Found in a 1942 publication this receiver can be made with more modern equivalent tubes. The circuit has a headphone output, but its signal can be applied to a transformer. The coils are for the mid-wave range and the circuit is dual-tuned with an RF amplifier stage.
