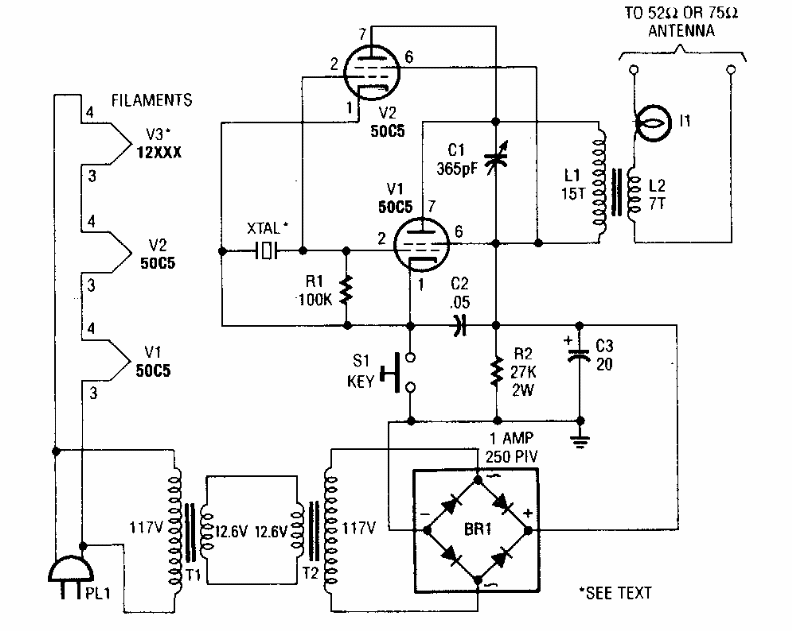

This circuit was taken from a Popular Electronics from the 90s. Note the power supply with two common transformers and the use of 50C5 tubes with filaments in series. A third tube with 12V filament is only used to provide a voltage drop across the supply.
| Clique na imagem para ampliar |
