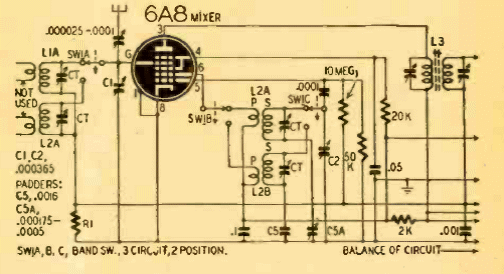

This two-band receiver was found on a Radio Craft from 1946. The circuit uses a single tube and consists of an oscillator stage. Power is not provided, and the circuit is designed to be part of a receiver.
Super reflex (T1079E)
- Details
- Written by: Newton C. Braga
