Power supply for the experimenter (T449E)

Details
Written by: Newton C. Braga

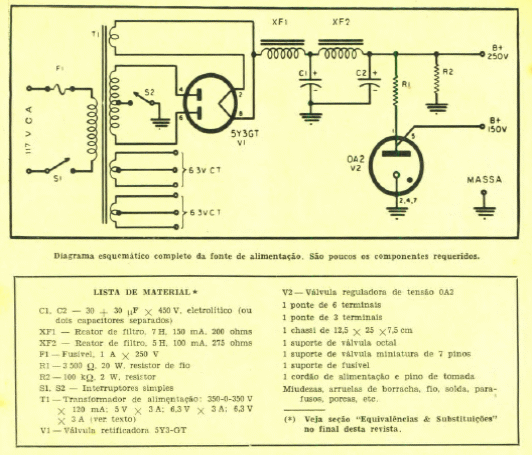

This source circuit for tubes was found in Popular Electronics from December 1957. The critical components are the transformers and filter shocks, in addition to the voltage regulator tube.
