20W HiFi Amplifier (T496E)

Details
Written by: Newton C. Braga

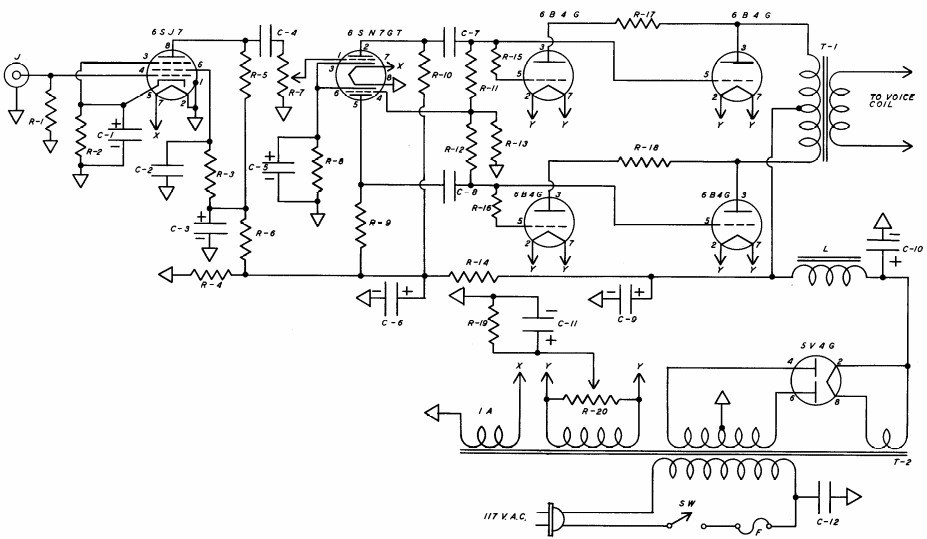

Found in a 1947 publication, this 7-tube amplifier uses four tubes in the output stage. The circuit uses a power source with a transformer.












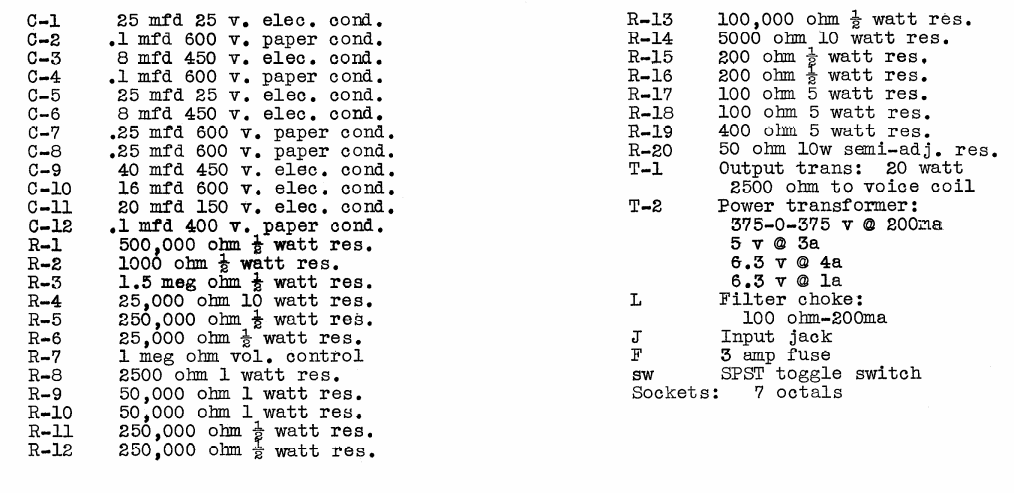

| Clique na imagem para ampliar |




| Clique na imagem para ampliar |
