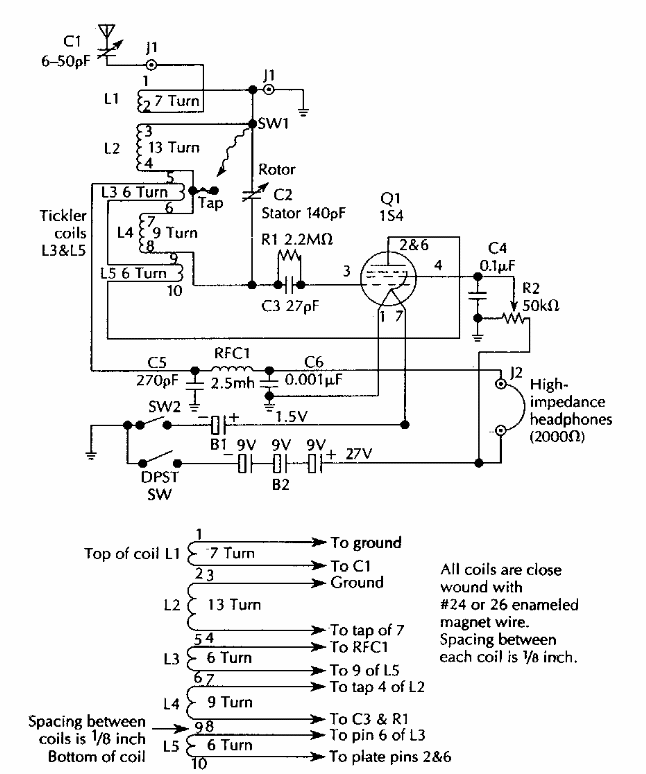

This shortwave receiver with a single tube was found in old documentation. It works at relatively low voltages that can be obtained from batteries. The handset must be high impedance magnetic.
| Clique na imagem para ampliar |
Regenerative shortwave receiver (T469E)
- Details
- Written by: Newton C. Braga
