30W Amplifier (T1004E)

Details
Written by: Newton C. Braga

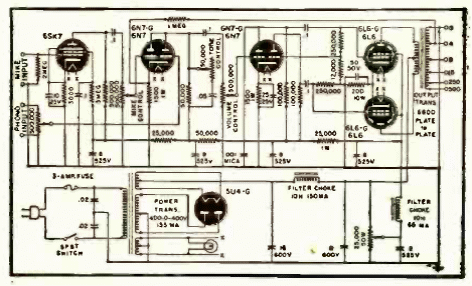

This high fidelity circuit was found on a Radio Craft from 1945. The 6-tube circuit has excellent power and is powered by a transformer source.
