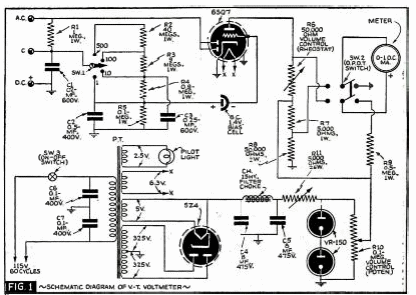

This useful bench circuit is from the 40's. There are two common tubes plus two voltage regulator tubes that allowed a precise adjustment of the operation of the instrument. The indicated circuit has 4 voltage scales and evidently, the accuracy will depend on the tolerance of the resistors used in the input divider. The circuit can still be assembled, converting the common multimeter into an instrument with high input resistance.
