Dual Tube Receiver (T883E)

Details
Written by: Newton C. Braga

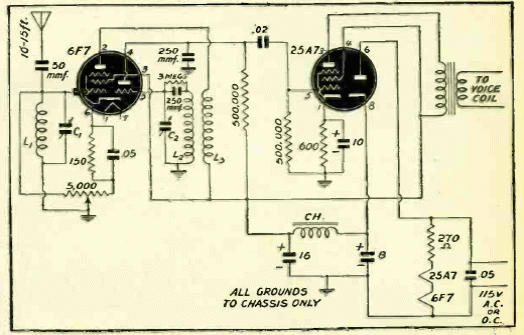

With two dual tubes, this mains-powered receiver performs like a 4-valve. The circuit is from 1944. Power comes directly from the power grid. The frequency range depends on the coils, in this case for medium waves.
