Signal Tracer (T969E)

Details
Written by: Newton C. Braga

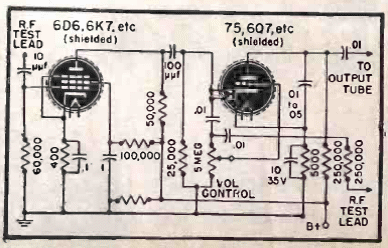

This two-tube signal tracer or tracer was found in a magazine from 1945. The circuit does not include the power supply and is for RF and audio signals.
