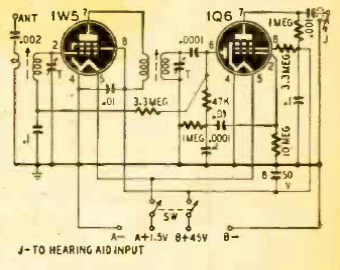

This circuit is from a Radio Craft from August 1948. The circuit requires an antenna for better performance and its output is coupled to a good audio amplifier. The supply must be made with the indicated voltages.
MW Tuner V1884S T1296E (T1296E)
- Details
- Written by: Newton C. Braga
