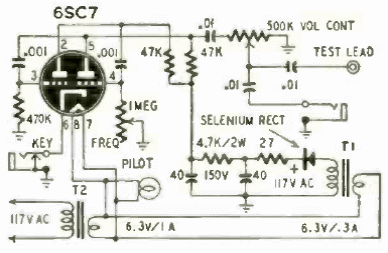

This telegraphy oscillator uses a double tube and is mains powered. Note the interesting inverted transformer to generate high voltage for the tube. The circuit is from a September 1948 Radio Craft.
Code practice oscillator (T1323E)
- Details
- Written by: Newton C. Braga
