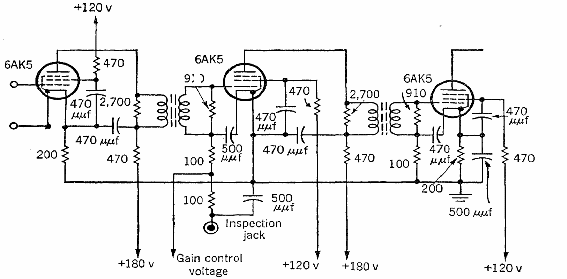

High gain amplifier (T449E)
- Details
- Written by: Newton C. Braga
This circuit was taken from an old MIT manual. It has high gain in the amplification of small signals. The transformers are tuned to the frequency that must be amplified.
