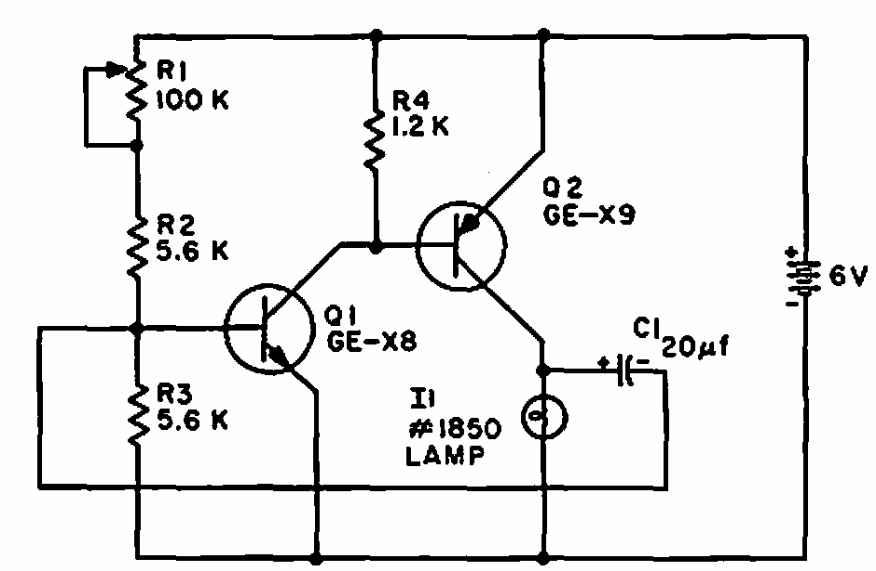

Bicycle Signaler (CB6758E)

Details: Written by: Newton C. Braga

This configuration similar to many of this site was found in 1965 General Electric documentation. Modern equivalent transistors can be used. LEDs can be used.
